DESCRIPTION

Basic Info.

Model NO.	HA HB HC HD
Keyword	V Belt
Color	Black
Fob Port	Shanghai or Ningbo
Usage	Power Transmission Equipment
Angle	40 Degrees
Using	Power Transmission
Cord	Polyester, Kevlar
Transportation	Express / by Air/ by Sea

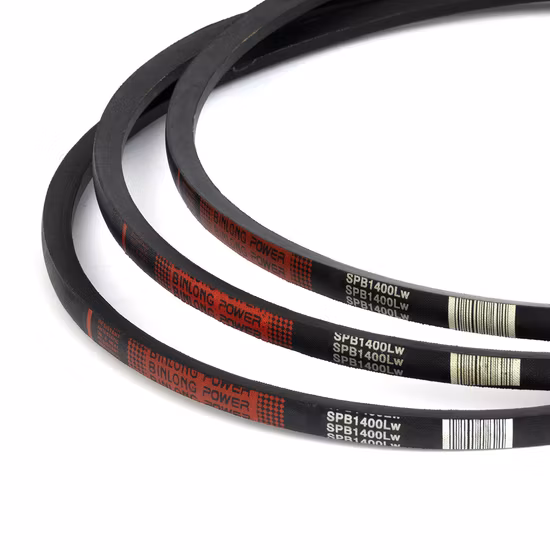

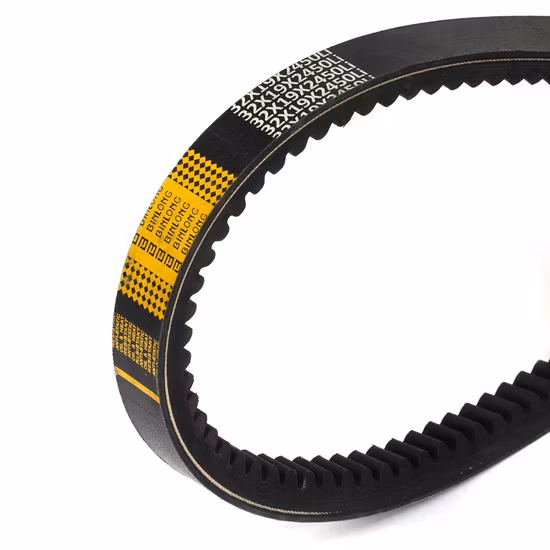

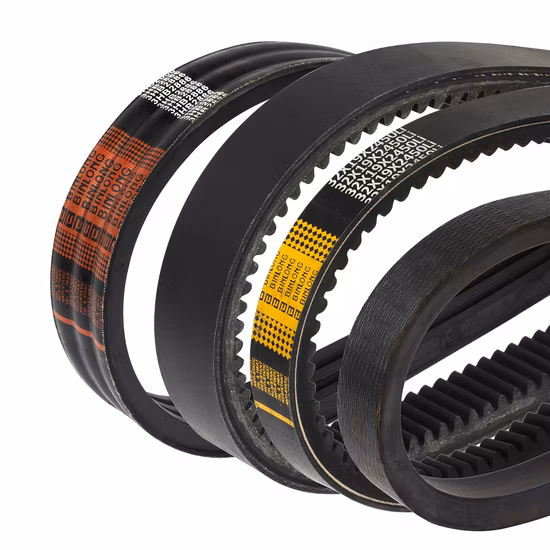

Product Name	Wrapped V Belt/ Classical Belt/V Belt
Transport Package	Carton, Package, Pallet
Specification	polyester, Kevlar
Trademark	BINLONG
Origin	China
HS Code	4010310000
Production Capacity	1000000

Product Description

Product Description
Applications:

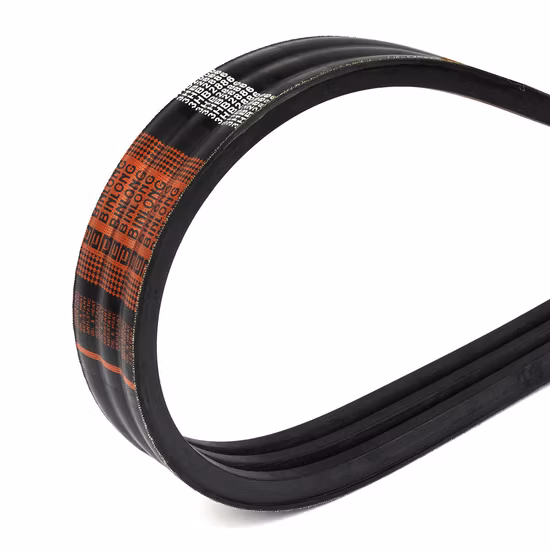

High Power Banded Belts
BINLONG Banded belts can be made by joining Classical V-belts. Each band may contain the specified number of belts. We recommended maximum of five belts in one tie-band.

Standards, Dimensions & Product Range:

Section	Top Width	Thickness	Angle
	(mm)	(mm)	(Deg)
HA	13	10	40
HB	17	13	40
HC	22	16	40
HD	32	21	40
HSPZ	10	8.5	40
HSPA	13	12	40
HSPB	17	16	40
HSPC	22	20	40
3V/9J	9.7	10	40
5V/15J	15.8	16	40
8V/25J	25.4	25	40

Our Feature

Characteristics: • Enhanced power transmission capacity• High adhesion strength between tie-band and the belts• Eliminates changes of mismatch in length• Antistatic, oil and heat resistant • Manufactured through single-stage curing process

Applications:

Banded belts are recommended under following conditions• Severe vibrations• Vertical shaft drives• V-flat drives• Agricultural drives• Conveyer systems• Stone crushers, reciprocating compressors, generator sets, pumps cold forging machine etcAll BINLONG Banded belts are high power belts. While using these belts it is always recommended to use standard pulleys with a proper guard. Appropriate belt sitting can only be obtained if the pitch maintained for the belts and that of pulleys is the same. We recommend that the customer should get back to us with details before using banded belts to enable us to provide the best solution. Improper design using banded belts can lead to premature failure of the drive system.

Our Company

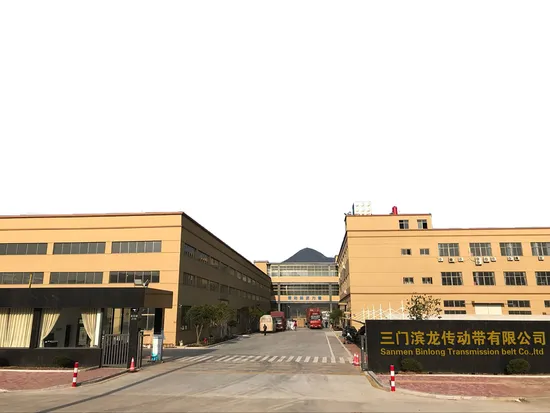

Factory Warehouse

Workshop

Packing & Delivery
Packing Details : Packing, carton , BagsDelivery Details : 15-20 days
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
